Level Indicators

Type : Tubular, Reflex, Transparent, Magnetic By-pass, Float & Board

Connection : BSPP, NPT, Flanged etc.

Material : PP, SS316, Carbon Steel etc.

Magnetic Level Switch

Type : Miniature, Cable Float, Side Mounted, Top Mounted

Connection : BSPP, NPT, Flanged etc.

Material : PP, SS316 etc.

Displacer Level Transmitters

Model : Fisher, Rosemount - Emersons Liquid level, Specific, Gravity or Interface Level

Application : Liquide Level, Specific, Gravity or Interface Level

Displacer Length : 100 mm to 4.5 Meter

Min. Differential Specific Gravity : 0.30 to 1.2 & 0.5

Accuracy : +/-0.5% of full scale (better on request)

Hazardous Area : ATEX, UL

Material Of Construction : Compatible Material of construction available for different process media. Can replace Fisher/ Masoneilin/ Yamatake/Motoyama/ parcol/ Eckard Transmitter, one to one…

Magnetostrictive Float Type Level Gauge With Transmitter

Measuring Range(mm) : 500-3500

Process Pressure : Max, 6O bar

Switch Rating : 250VAV12 ;2.5 A/220 V DC13; 0.3 A

Protection Enclosure : IP65

Features(Optional) : Switches/Transmitter, ATEX, FM, UL

Output : 4-20 mA/ HART

Switch : SPDT, SPST, DPST

Ultrasonic Level Transmitter

Media : Liquid / Solid

Ledge : 0 to 25 Mtrs. for liquid/50 Mtrs. for Solid

Indicator : Digital Display

Working temperature : -40 to 70° C

Working pressure : -0.02 to 0.1 MPa

Output : 4 to 20 mA/HART

Power supply : 24 V DC ± 10%

Ex. Proof : Ex ia lib t6

Protection Grade : IP66

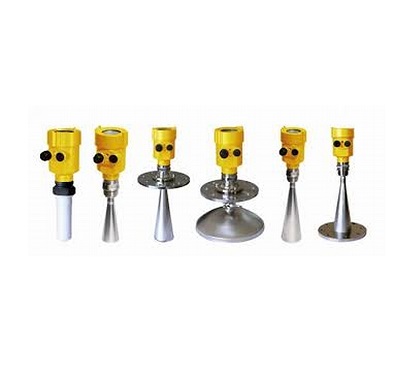

Non-contact Radar Level Transmitter

Suitable for Medium : Liquid

Measuring Range : 30 meters

Temperature : -40℃ ~ 250℃

Process Pressure : -0.1 ~ 0.3 MPa

Signal Output : (4 ~ 20) mA/HART

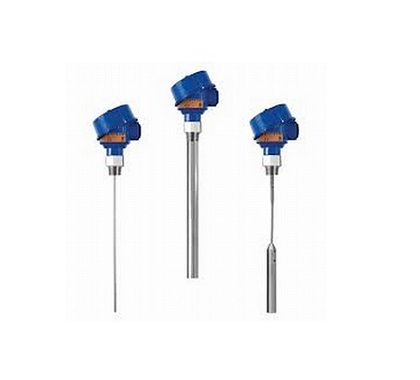

Guided Wave Radar Wired/Rigid Rod Level Transmitter

Measuring range - Distance : 75 m

Working temperature : -40 ... 200 °C

Process pressure : -1 ... 40 bar

Accuracy : ± 2 mm
